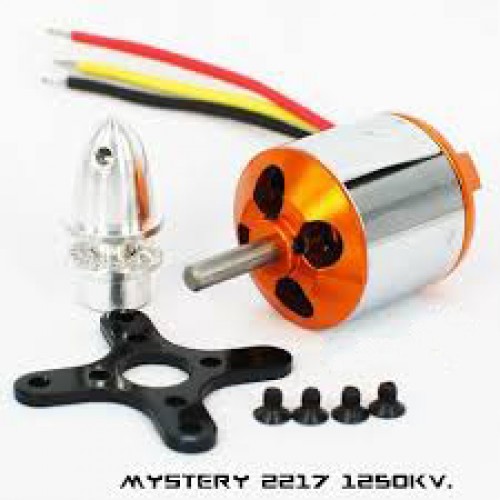

Mystery 2217 1250kv

Mystery A2217K-7 1250KV Brushless Outrunner motor for 300g-800g 3D Flight

No: A2217K-7

RPM/V: 1250

No. Of cells(Ni-MH): 6-10Ni-MH

No. Of cells(Li-Po): 2-3Li-Po

Max. Efficiency current: 5 -18 A (>75%)

NoLoad current/10V: 1.3 A

Current capacity: 20 A/60 s

Max. Efficiency: 0.79

Shaft diameter (mm): 4 mm

Weight with cables: 70 g

Internal Resistance: 150 M&Omega

Dimensions (mm): 27.5x30

Recomended model weight: 300 - 800 g

Recomended prop without gearbox: 2S 1047/3S 9050

Remarks: Ideal to work with 30A ESC or 40A ESC

70g Outrunner

Kv: 1250, RM: 0.15, io: 1.3A, Poles: 14

Max AMPS: 20A for 60sec

Shaft is 4.0mm

Dimensions: 27.5mm x 30mm

These are really great little outrunners. We've tested this line and they work extremely well.
