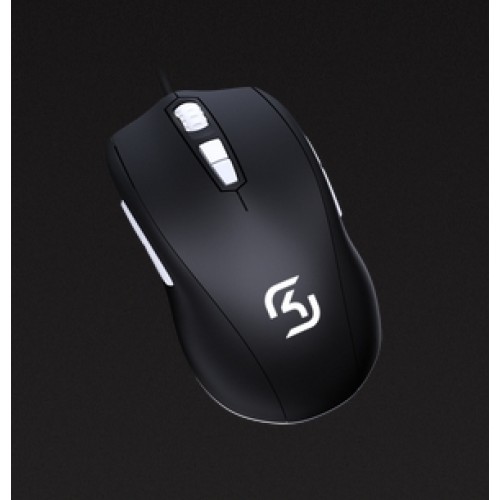

Mionix AVIOR SK TEAM EDITION OPTICAL GAMING MOUSE

The official gaming mouse of SK Gaming, the AVIOR SK is a premium 9 button ambidextrous mouse. The unique ergonomic shape has been developed to be used by either right or left-handed gamers, and to support a palm or claw grip.



The ADNS-3310 gaming grade optical sensor delivers no positive or negative hardware acceleration, amazing accuracy, smooth tracking, and a maximum speed of more than 5.45m/sec (215 IPS) all the way up to 7000DPI.



With the new lift off distance (LOD) Calibration feature we have combined the Surface Quality Analyzer Tool (S.Q.A.T ™) with adjustment of the lift off height to find the lowest possible LOD with optimized tracking.



The lightning fast 32bit ARM™ processor enables the mouse to have many features without compromising the tracking of the sensor. The downloadable software provides access to fully customize all buttons, sensor settings, LED colors, macros and profiles.



Product Features



Ambidextrous design

Supported shape for use by both right and left handed gamers.



Palm or Claw grip

Suited to both claw and Palm grips



Gaming grade optical sensor

The ADNS-3310 gaming grade optical sensor delivers no positive or negative acceleration, amazing accuracy and smooth tracking.



Up to 7000DPI

Up to 7000DPI in steps of 50 allow you to find your perfect sensitivity settings.



Lighting fast processor

The 32bit ARM Processor running at 32Mhz is the powerful engine to power it all.



128kb built-in memory

Bring your settings and recorded macros with you stored into one of 5 profiles.



Maximum grip

4 layers of rubber coating ensure a maximum grip and soft touch feel.



Angle Tuning

You can adjust the X/Y rotation angle to counter your hand sweep angle, to improve your accuracy.



Customizable LED lighting system

Personalize your mouse with up to.16.8 Million colour options.



Stunning Lighting effects

Solid, Blinking, Pulsating and Breathing effects running single colour or colour shift.



S.Q.A.T - Surface Quality Analyzer Tool

Surface Quality Analyzer Tool measures tracking quality of your gaming surface.



In-game 3 step DPI adjustment

Set 3 DPI values and switch easily between them in-game.



9 fully programmable buttons

The buttons can be assigned to any key, mouse command or macro



In-game profile switch

Switch easily between stored profiles in-game.



Adjustable polling rate

Tune it all the way up to 1000Hz and up to 1ms response time.



Plug n Play

Completely Plug n Play, software needed only for configuration.



Technical Specifications



32bit ARM processor 32mhz

Ambidextrous design, palm or claw grip

Soft touch rubber coating

9 fully programmable buttons

3 steps in-game DPI adjustment

2 integrated LEDs in 2 colour zones

Up to 16.8 Million LED colour options

Color shift, Solid, Blinking, Pulsating and Breathing effects

128 kb built-in memory

Large PTFE mouse feet

Gold Plated, Full speed USB 2.0 connection with Plug and Play



Sensor Specification



ADNS – 3310 gaming grade IR-LED optical sensor

Up to 7000DPI

MAX tracking speed of at least 5.45m/sec (215 IPS)

No positive or negative hardware acceleration

Adjustable Lift Off Distance

Cable 2m long braided cable



Software Features



Up to 5 Profiles saved to the in-built memory

Adjustable X / Y Axis

Adjustable Polling Rate

Live record macro manager

Up to 16.8 million color LED options

Customize RGB manger

Pulsating, Blinking and Breathing LED effects

Color Shift lighting mode

Angle Snapping adjustable in 15 steps

Angle Tuning adjustable from -30 to 30 degrees

LOD Calibration tool

S.Q.A.T™ – Surface Quality Analyzer Tool



Dimensions & Weight



125.3×65×36.6 mm / 4.93×2.56×1.44 in

Netto (w/o cable): 100 gr

Netto (cable incl.): 146 gr



Compliance



This product is FCC, CE, C-Tick, VCCI, BSMI, KCC and RoHS compliant. For more information please contact us.



Warranty



InformationWe think that we design the very best gaming gear that money can buy and we use only top grade components to build them.

In the very unlikely case you should get a faulty product we follow local warranty laws which means that we will, in EU, replace any faulty product free of charge during the 2 year guarantee (1 year in US and Asia)

The warranty does not cover defects caused by any kind of usage that is not attributed to the manufacturing process - if you should "accidently" throw the mouse into a brick wall after losing a game - warranty will not cover damages to neither mouse nor wall



Package Contents



Mionix AVIOR SK

Mionix logo Sticker

Quick installation guide
